Wytaczarka pozioma DBM-110X DRO 960 × 1100 mm
DBM-110X należy do serii uniwersalnych poziomych wytaczarek i frezarek konwencjonalnych DBM / HBM, przeznaczonych do wiercenia, pogłębiania, wytaczania, rozwiercania, planowania czołowego, gwintowania oraz frezowania.
DBM-110X Horizontal Boring Machine
DBM-110X belongs to the DBM series of universal conventional horizontal boring and milling machines, designed for drilling, counterboring, boring, reaming, face milling, tapping and milling.
The machine is suitable for machining large housings, plates, structural components and workpieces requiring precise hole machining. Its robust cast-iron construction, hardened and ground guideways, DRO positioning system and 960 × 1100 mm worktable ensure stability, precision and convenient operation in metalworking facilities, maintenance departments, machine manufacturing and component refurbishment.
The model features a 110 mm spindle with an ISO50 taper, maximum spindle torque of 1225 N·m, spindle thrust of 12250 N, a 960 × 1100 mm table, table load capacity of 2500 kg, X/Y/Z-axis travel of 1250 / 900 / 1400 mm, W-axis spindle travel of 600 mm, U-axis facing-head travel of 180 mm and an 11 kW main motor.

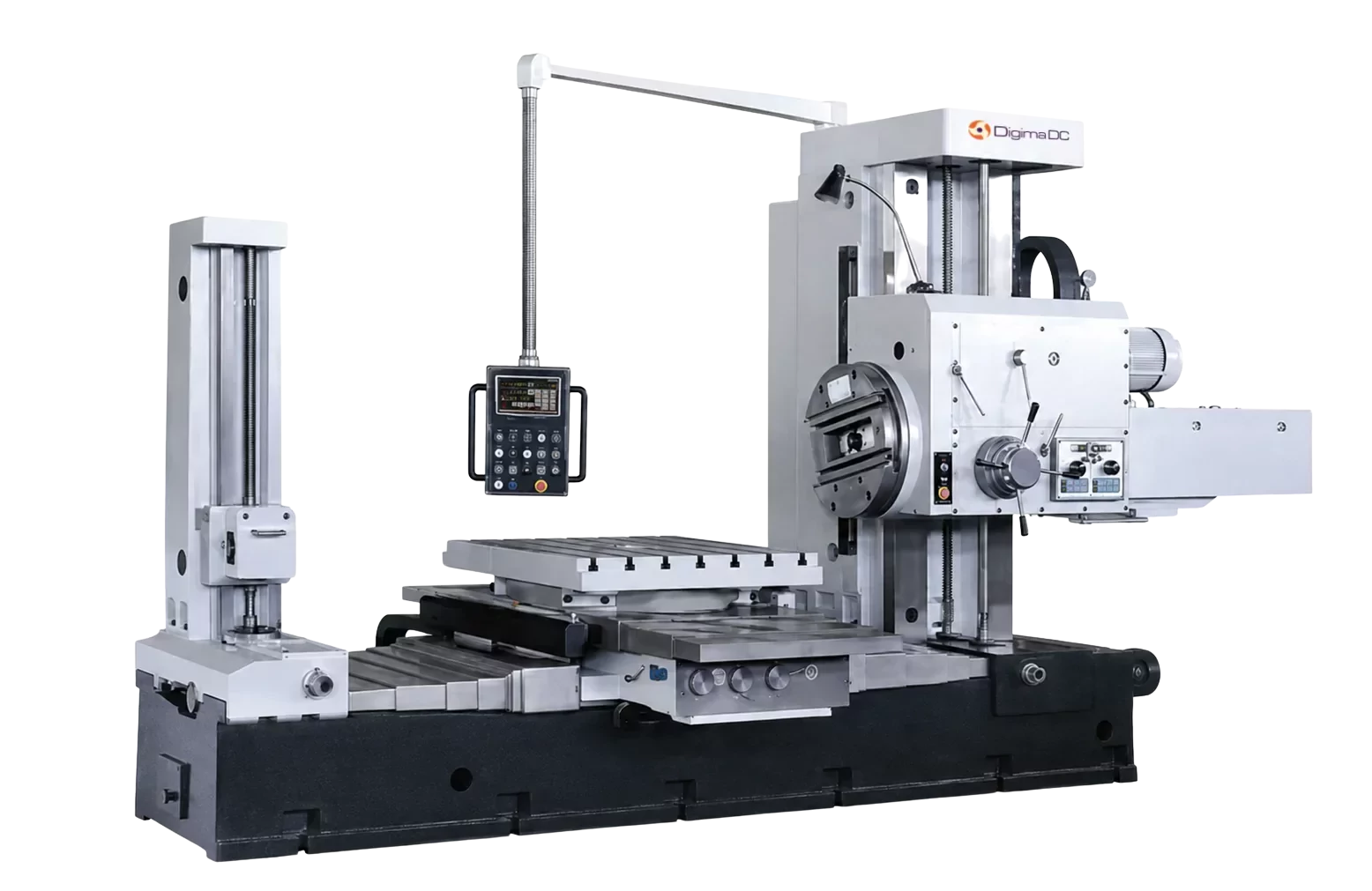

Images and Key Components of the DBM-110X Model
Rigid Construction and Convenient Operation

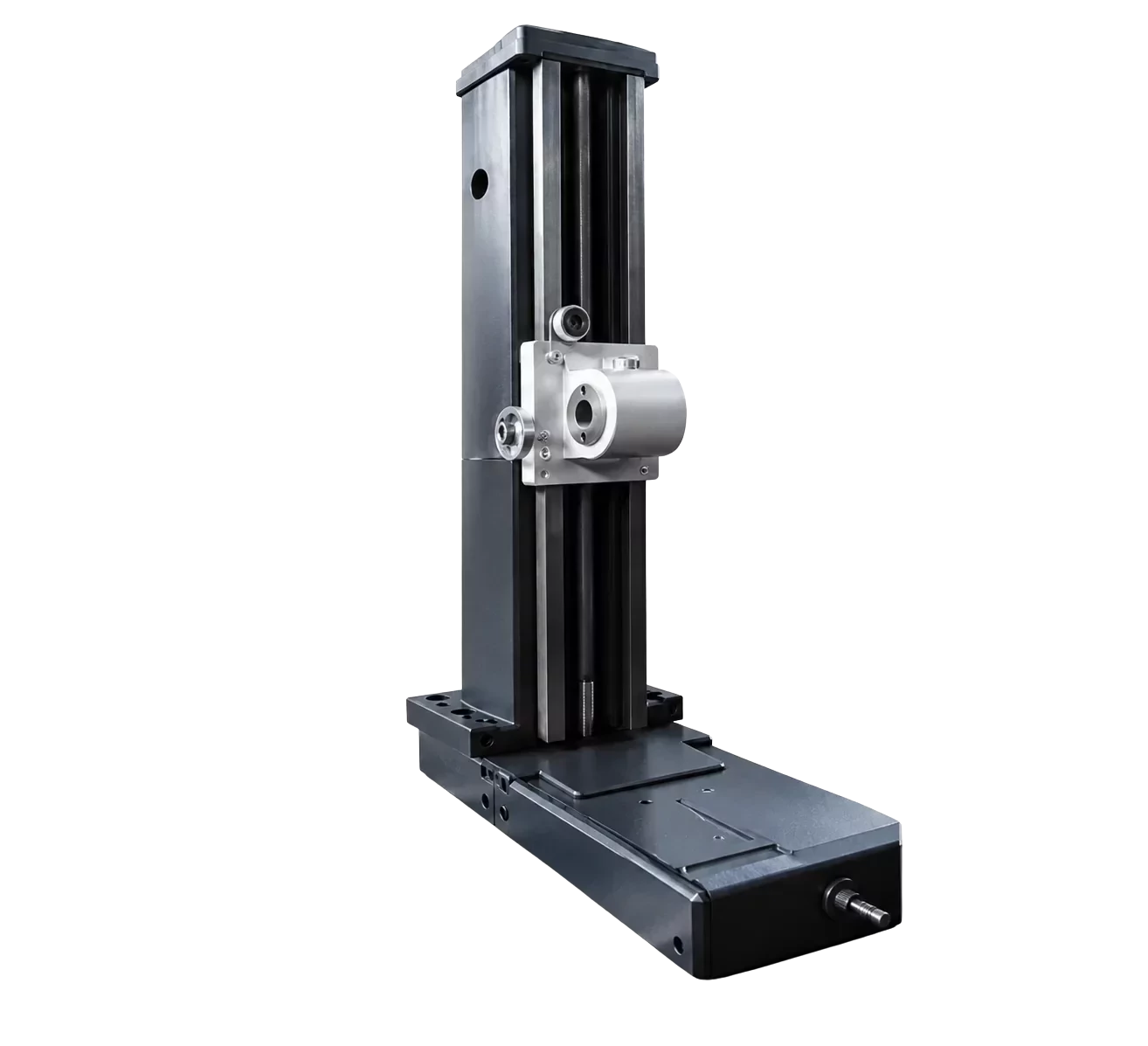

The machine consists of a bed, front column, headstock, transverse and longitudinal saddles, worktable, rear column and a counterweight system with a pulley. The headstock moves vertically along the column guideways, while the worktable can move transversely and longitudinally along the bed and rotate for workpiece setup.
The main machine components, such as the bed, front column and longitudinal saddle guideways, are manufactured using electrical-contact surface hardening with self-cooling. This solution increases guideway rigidity and extends machine service life.

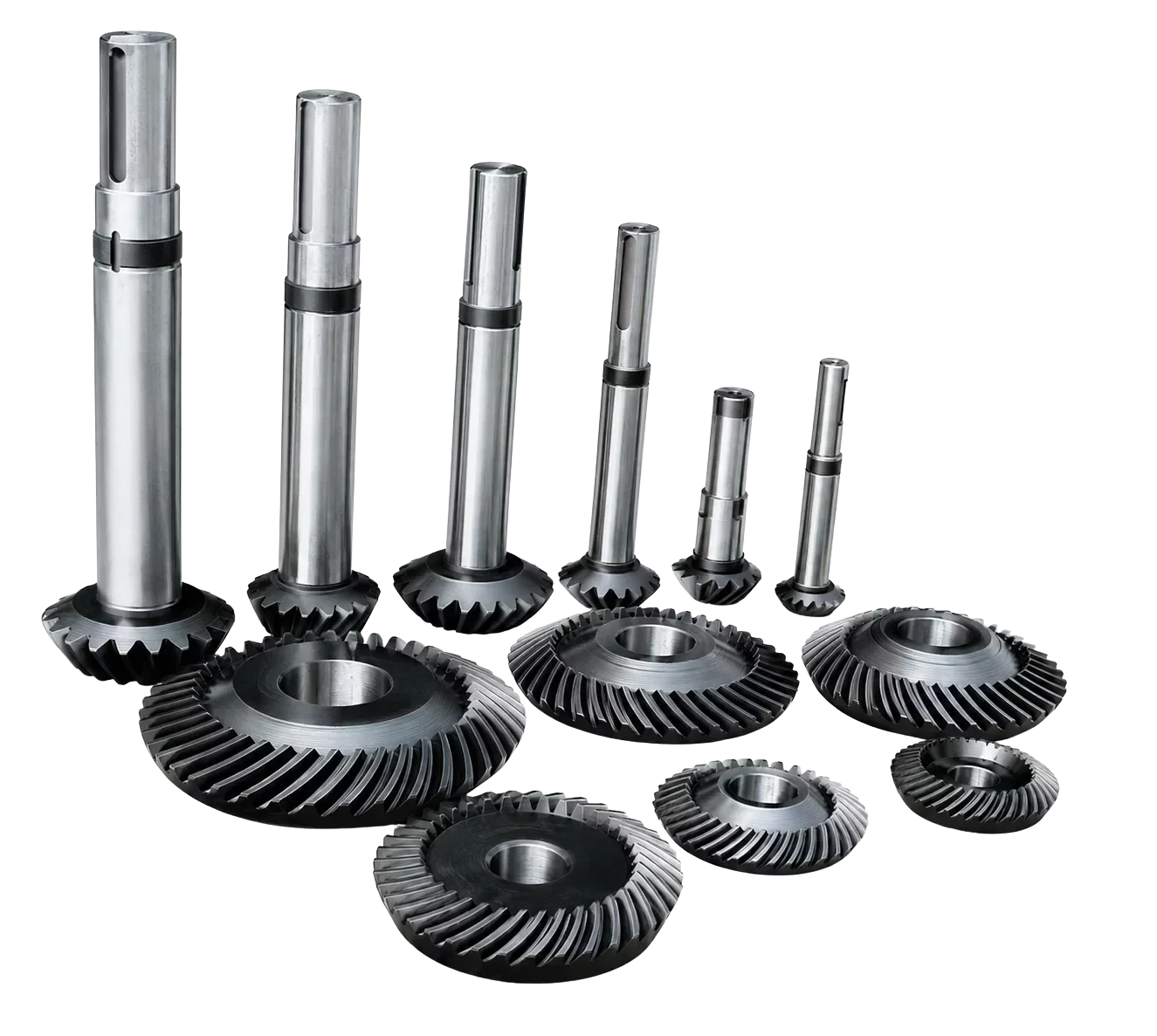

Central hydraulic control with preselection is simple and convenient to operate. When changing speeds and feeds, indicator lights inform the operator about the progress of the process. The machine electrical system uses a programmable PLC controller, increasing operating reliability. The machine can also be configured to meet specific customer requirements and different machining standards.
Key Features of the DBM-110X
Universal application — drilling, counterboring, boring, reaming, face milling, tapping and milling.
Extended X-axis travel — the 1250 mm range allows machining of longer components and increases application flexibility.
Rigid cast-iron construction ensures stability during machining of heavy and large workpieces.
Electrically controlled, hardened and ground guideways ensure smooth movement and stable axis operation.

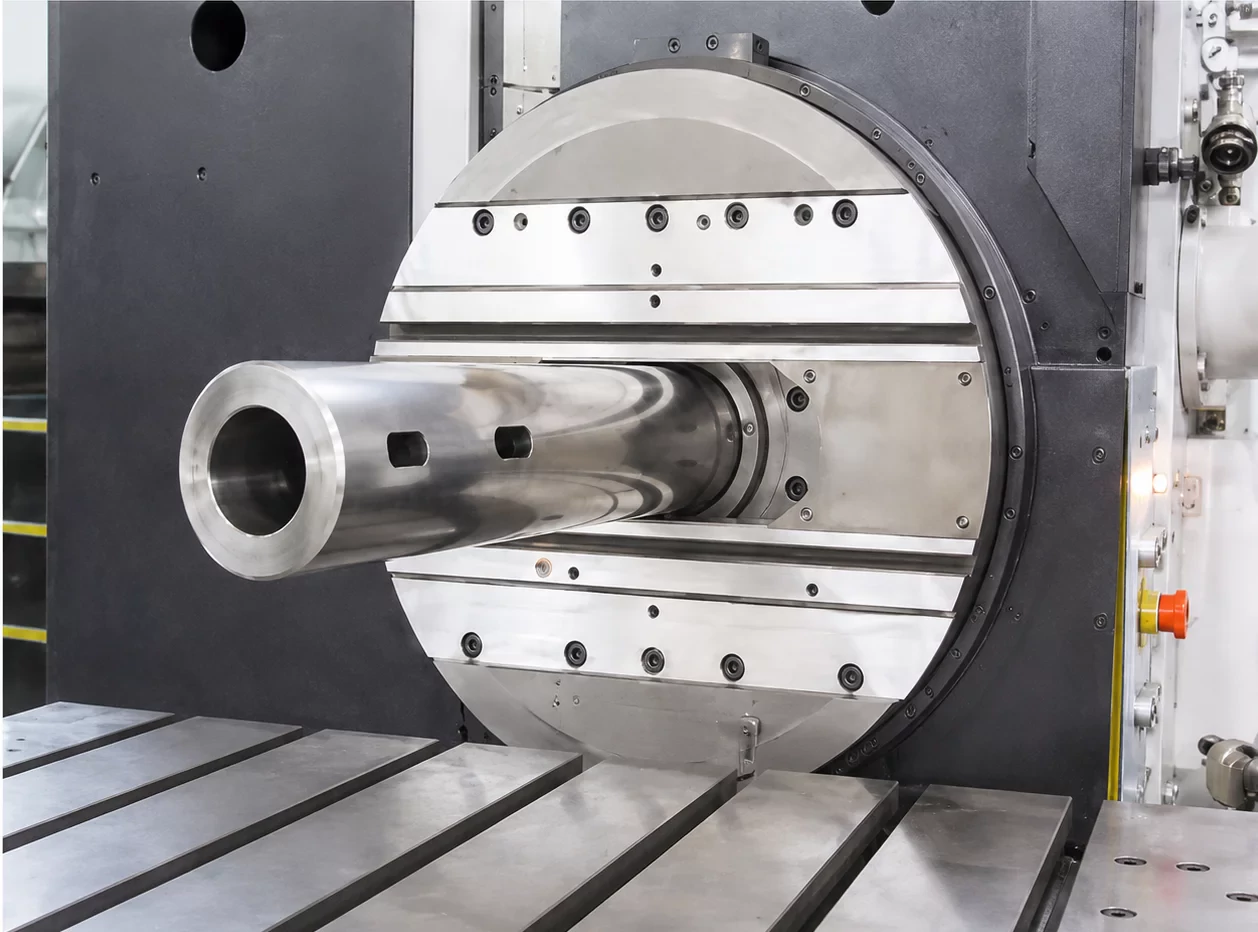

Nitrided boring spindle increases durability and enables long machine service life.

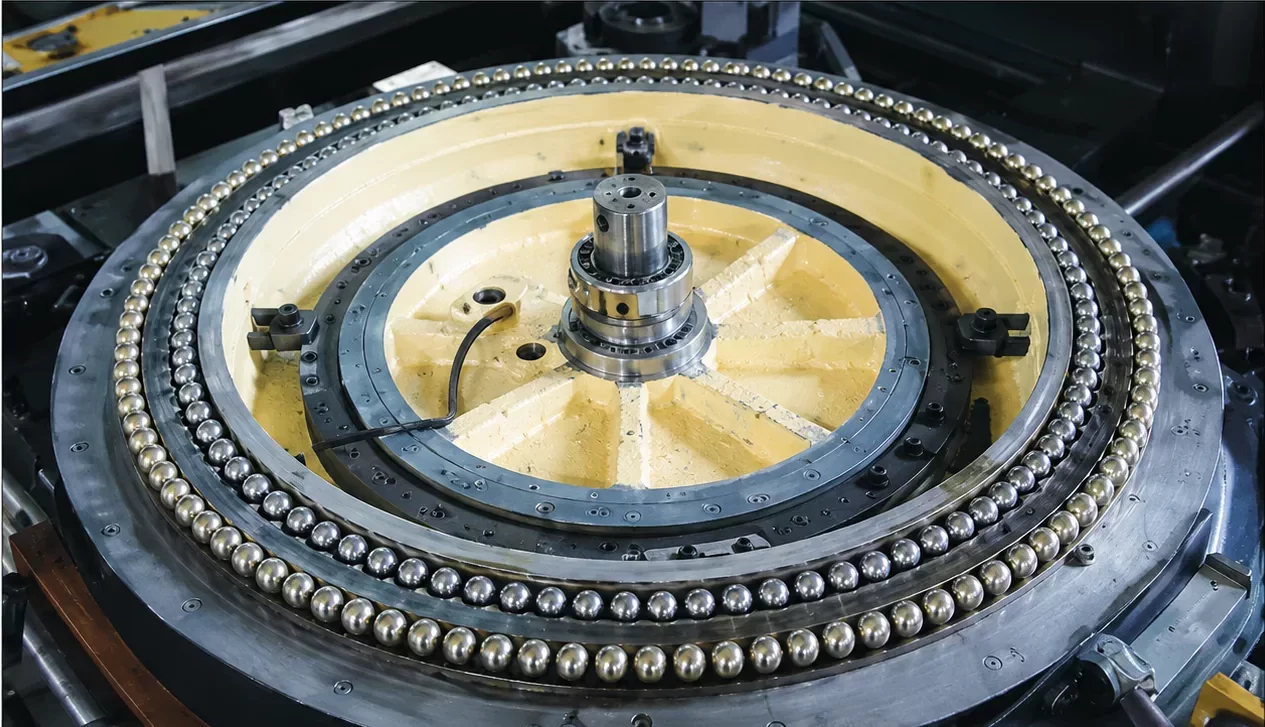

Position locking at 0°, 90°, 180° and 270° enables precise table positioning during machining.
Programmable PLC controller supports reliable machine control and monitoring.

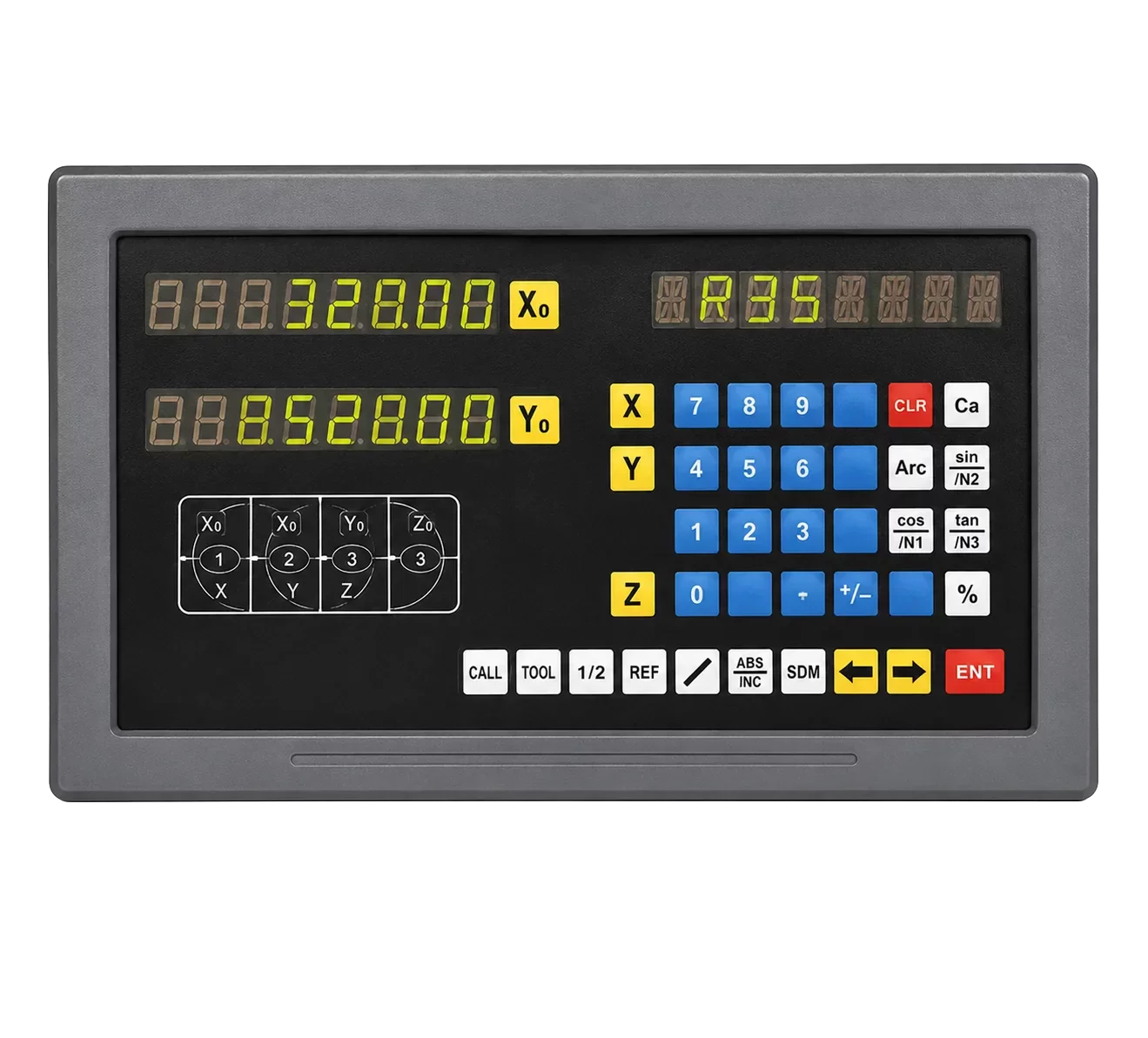

DRO system facilitates axis position readout and improves operator convenience.
Standard and Optional Equipment
Standard equipment — foundation wedges and screws, oil can, hand tools, operating manuals and basic components required for machine commissioning and operation.
Optional equipment — clamping angle plate, change gears for threading, boring head / boring bar and other components selected for the specific machining process.
Wide Range of Applications for the DBM-110X Boring Machine
Thanks to its highly rigid and stable construction, extensive machining capabilities, high cutting performance, extended X-axis travel and substantial table load capacity, the DBM-110X finds broad application in many industries.
Valve, pump and bearing industry — machining housings, seats, mounting holes and precision components.
Aerospace, automotive, wind power and oil industry — machining large structural and process components.
Hydro and steam turbine generators — preparation of holes, faces and mounting elements of large components.
Mining, railways and earthmoving machinery — refurbishment and production of heavy machine parts and structures.
Machinery industry — machining housings, frames, plates and large cast components.
Metalworking facilities — drilling, boring, reaming, tapping and face machining.
